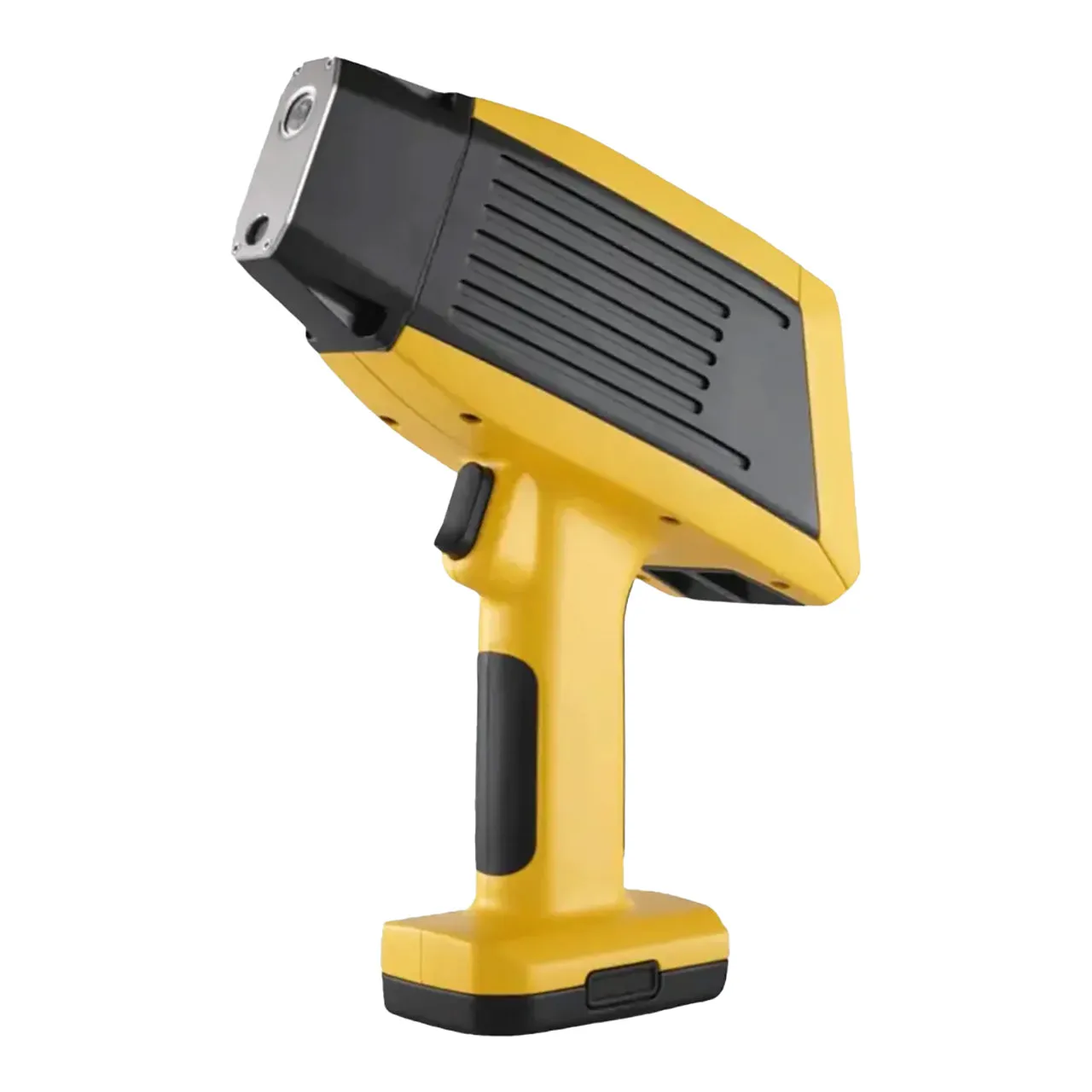

Our GEMORO XRF is a handheld, portable Energy Dispersive XRF Spectrometer designed for retail jewelers, pawnshops, appraisers, precious metals buyers, and manufacturers. Users can benefit from this fast and efficient technology, quickly identifying and measuring each element in jewelry, coins, watches, and more. This easy-to-use, fast, and precise XRF is lightweight, yet rugged enough to use all day long. X-ray Fluorescence or XRF is a non-destructive, analytical method used to determine elemental concentrations of various materials on the surface of what is being analyzed. It’s important to recognize that not all XRF analyzers have the same capabilities. The GEMORO XRF Analyzer accurately measures a wide range of precious metal elements, including gold, silver, lead, and nickel. With its advanced technology, this analyzer does not measure for aluminum, magnesium, or silicon. (See Tech Notes for complete list of metals) A must-have tool for professionals in the industry. With advanced technology, this device also detects gallium, bismuth, and other valuable metals, providing precise results for testing and analysis.
The GEMORO XRF determines the percentage of each element, thoroughly measuring an area 1.5mm in diameter while reaching a robust depth of 15-20 microns. Five times the typical depth of gold plating which has a thickness of only 1-3 microns. This state-of-the-art instrument represents a high-tech alternative to a destructive fire assay. The GEMORO XRF includes two 6-hour long-lasting rechargeable batteries with an AC adapter. Users have the ability to set a passcode access parameter to manage user access. WiFi/Bluetooth/USB connection capabilities allow you to quickly send sample images and test results to your computer for easy filing. This feature-rich unit comes with a protective Pelican Case to ensure it arrives in perfect condition and enables you to carry it into the field. For analysis of small pieces, a Benchtop Docking Station Conversion kit is available that allows the user to anchor the XRF device to a table by connecting it to a dock while it is securely positioned upright. Note this item is drop-shipped from the manufacturer and there is a fixed shipping cost of $175.00 that covers freight and insurance. If adding the above Docking Station and shipping with Analyzer (8171118 and 8171119) then fixed shipping cost will be $225.00. Payment due in full at the time of order processing.
Specifications:
Testing Area: 1.5mm Diameter
Lens Material: Carbon Fiber Mesh
Measuring Depth: 15-20 Microns
Tube Life Expectancy: 8,000 Hours or 48,000 Tests
Tube Specification: 40K V, 200uA Rh Anode, 1 Beam
Detector: 7mm2 PiN Diode Detector (active area), 190eV resolution FQHM at 5.95Mn K-Alpha Line
Battery Life: Includes AC Adapter and 2 Rechargeable Batteries (6 Hours/Battery)
Certifications: CE, RoHS, USFDA, Canada RED Act
Product Weight: 3.1Lbs With Battery
Dimensions: 7.25” x 10.5” x 4.5”
Data Transfer: WIFI, Bluetooth, USB Connectivity to Most Devices
Calibration Check: Very Quick – Internal Shutter is 316 Stainless for Totally Automated Calibration and Energy Scale Validation
Environmental Temp: 10°F to 130°F at 25% Duty Cycle
Security: Password Protected Usage (user level) and Internal Settings (admin)
Warranty: 1-Year Warranty
